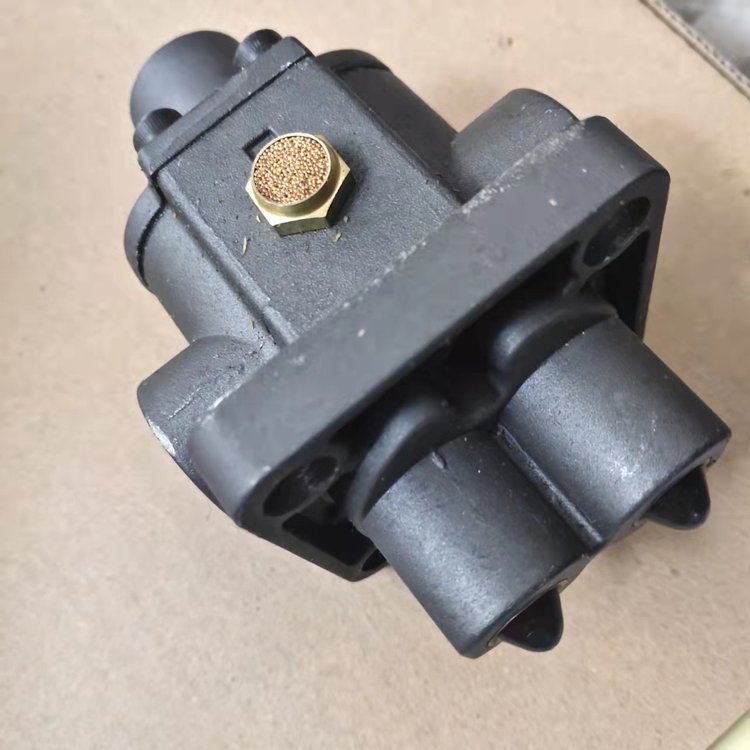

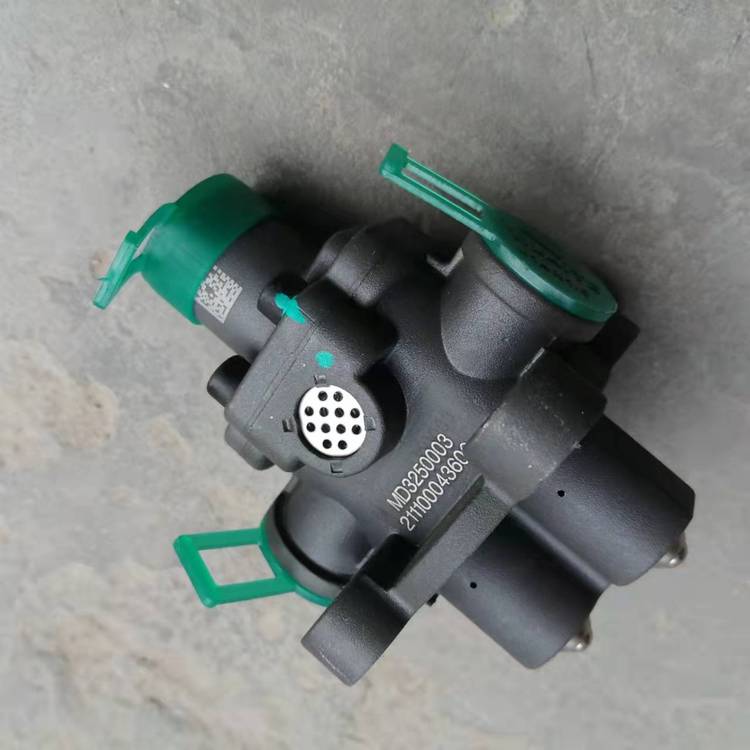

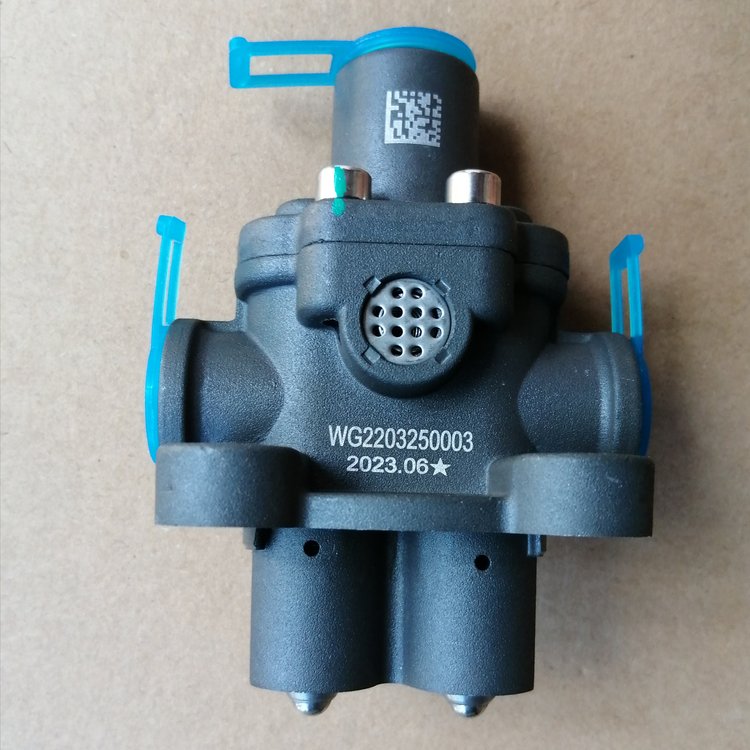

YILAITE Dual H Valve Assembly WG2203250003

—Core Control Unit of Heavy-Duty Truck Transmission Air Circuit System

Product Overview

This product is a key actuator in the air circuit system of heavy-duty truck transmissions such as Sinotruk Howo and Sinotruk Shandeka. The model number is WG2203250003 (compatible with mark 250807000765), and it is manufactured by YILAITE, a brand under Zhejiang Chuangtuo Automotive Parts Co., Ltd. Research and development, manufacturing. As the core control component for gear shifting in the auxiliary gearbox, the dual H-valve assembly achieves stable switching between high and low gear ranges by precisely regulating the air circuit signal, ensuring the continuity of power transmission and smoothness of gear shifting under various operating conditions.

Core Function Analysis: Precise Gear Control: The dual H-valve receives shift air pressure signals from the cab, driving the auxiliary gearbox cylinder piston to complete the switching between high and low gear ranges. Structural design ensures rapid response...Synchronized operation effectively reduces shift shock and minimizes mechanical damage to the transmission system.

Reliable air circuit sealing: Employing end-face sealing technology improves the sealing performance of interface connections, eliminating shift failures caused by air leakage or cross-contamination, and enhancing system operational stability.

Intelligent fault compensation: Built-in sliding column telescopic protection structure allows for air pressure compensation by adjusting the valve core when cylinder seals wear, maintaining gear locking function and extending the overall service life of the transmission.

Technical advantages and adaptability

Original Factory Matching: Strictly adheres to the air circuit design specifications of HW series transmissions for models such as Sinotruk Howo T7H, Sinotruk C7H/C9H, and Howo J7G/N7G, achieving complete interchangeability with original factory parts.

Fast Response Performance: Optimized internal air circuit layout shortens the air pressure transmission path and improves the execution efficiency of control commands, making it particularly suitable for frequent speed changes in highway transportation and engineering operations.

High-Strength and Durable Design: The valve body is made of high wear-resistant alloy material.Made of high-quality materials, it possesses excellent pressure resistance and fatigue resistance, adapting to the long-term high-load operation environment of heavy trucks, and its reliability far exceeds that of conventional pneumatic components.

Application Scenarios and Usage Value

Heavy-duty transportation conditions: In complex road conditions such as mountainous areas and slopes, it ensures accurate gear shifting, avoiding climbing difficulties or safety hazards caused by power interruption.

Urban logistics operations: Facing frequent start-stop and gear shifting needs, it provides a smooth shifting experience, reduces wear on the transmission system, and reduces... Reduced maintenance frequency and operating costs.

Vehicle Modification and Upgrade: As a standardized air circuit control module, it supports performance optimization and system modification of mainstream heavy-duty truck platforms, possessing excellent scalability and compatibility.

Brand Strength and Service Guarantee

Intelligent Manufacturing Guarantee: Zhejiang Chuangtuo Automotive Parts Co., Ltd. adopts automated production lines and strict quality control...Inspection process ensures consistency and high quality for every batch of products.

Professional technical support: Providing comprehensive technical consultation and troubleshooting services to assist customers in quickly diagnosing gas system abnormalities and improving maintenance efficiency.
