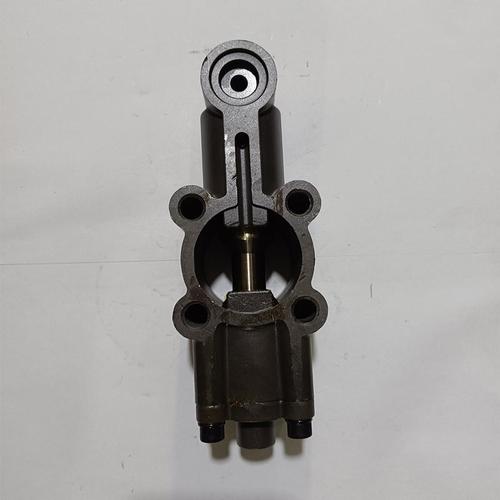

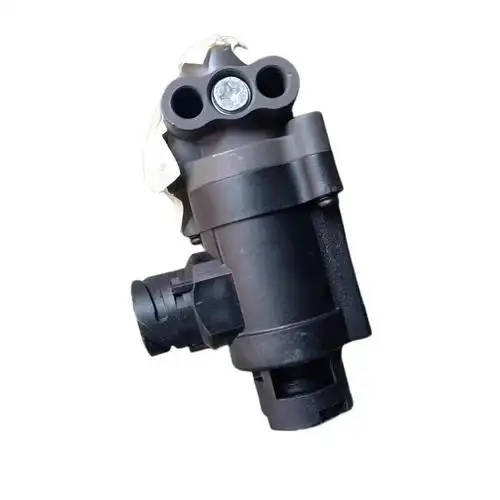

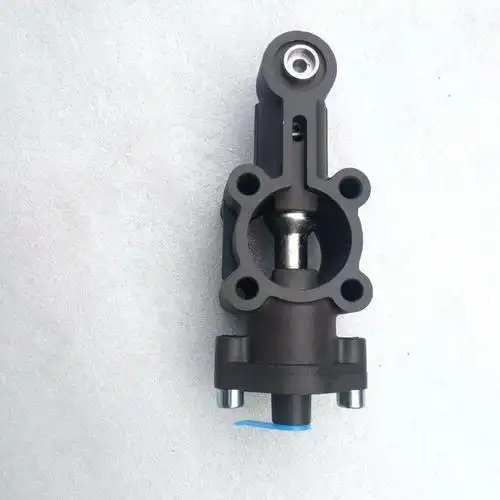

YILAITE Pneumatic Locking Valve Assembly WG2203250010
The pneumatically controlled stop valve assembly is characterized by its compact size, corrosion resistance, and sensitivity to minute pressure differences. It can lock the valve position in the event of a pneumatic supply failure, ensuring the safety and stability of the process flow.
YILAITE pneumatic lock valve assembly WG2203250010
——Heavy truck gearbox safety locking core component
Product overview
ELITE air-controlled locking valve assembly WG2203250010 It is the core component of the air system specially designed for heavy-duty trucks equipped with HW series transmissions such as Sinotruk Howo T7H, Shandeka C7H/C9H, and Haohan J7G/N7G. By accurately controlling the air circuit signal, the transmission gear can be safely locked and unlocked, effectively preventing transmission damage caused by misoperation and ensuring the operational reliability of the vehicle under complex working conditions.
Applicable models: Sinotruk Howo T7H, Shandeka C7H/C9H, Haohan J7G/N7G and other HW series transformers Speed box heavy truck
Core function analysis
employs an end-face sealing structure, significantly improving the reliability of air circuit connections and reducing air pressure leakage or cross-contamination issues.
A built-in fault protection valve automatically cuts off the air pressure supply when the air circuit system malfunctions, preventing the transmission from entering a dangerous state.
Technical advantages and adaptability
1. Original Factory Compatibility
Strictly adheres to the air circuit design standards of HW series transmissions for models such as Sinotruk Howo and Sinotruk Shandeka, ensuring seamless replacement of original parts.
The interface and pipeline layout are completely matched to the original vehicle, requiring no additional modifications after installation.
2. High-Efficiency Response
By optimizing the air circuit channel design, the air pressure transmission path is shortened, improving the immediacy of lock/unlock operations.
Response time ≤ 0.2 seconds, meeting the safety requirements of frequent gear changes in heavy truck scenarios.
3. Enhanced Durability
The valve body is made of high-strength alloy material, suitable for the long-term high-load operation environment of heavy trucks.
After 500,000 cycle tests, its wear resistance is significantly better than that of ordinary pneumatic components.
Application Scenarios and Value
1. Heavy-duty Transportation
In mountainous areas or complex road conditions, ensuring...The precision of gear shifting prevents power interruption due to misoperation.
The locking function prevents the vehicle from rolling back due to incorrect gear selection when starting on an incline.
2. Urban Logistics
In frequent start-stop scenarios, smooth gear shifting reduces mechanical wear and maintenance costs.
The unlocking mechanism prevents gearbox damage due to driver misoperation and extends its service life.
3." Retrofit and Upgrade:
Provides standardized interfaces for performance optimization, compatible with mainstream heavy-duty truck pneumatic system modification needs.
Can be paired with other Elet pneumatic components (such as dual H-valve assemblies) to achieve system-level upgrades.
Brand and Service Support:
Production Guarantee: Zhejiang Chuangtuo Automotive Parts Co., Ltd. relies on automated production lines to ensure batch consistency and quality stability of products.
After-sales System: Provides technical consultation and fault diagnosis services to assist users in quickly locating pneumatic system abnormalities.
The pneumatically controlled stop valve assembly is characterized by its compact size, corrosion resistance, and sensitivity to minute pressure differences. It can lock the valve position in the event of a pneumatic supply failure, ensuring the safety and stability of the process flow.
