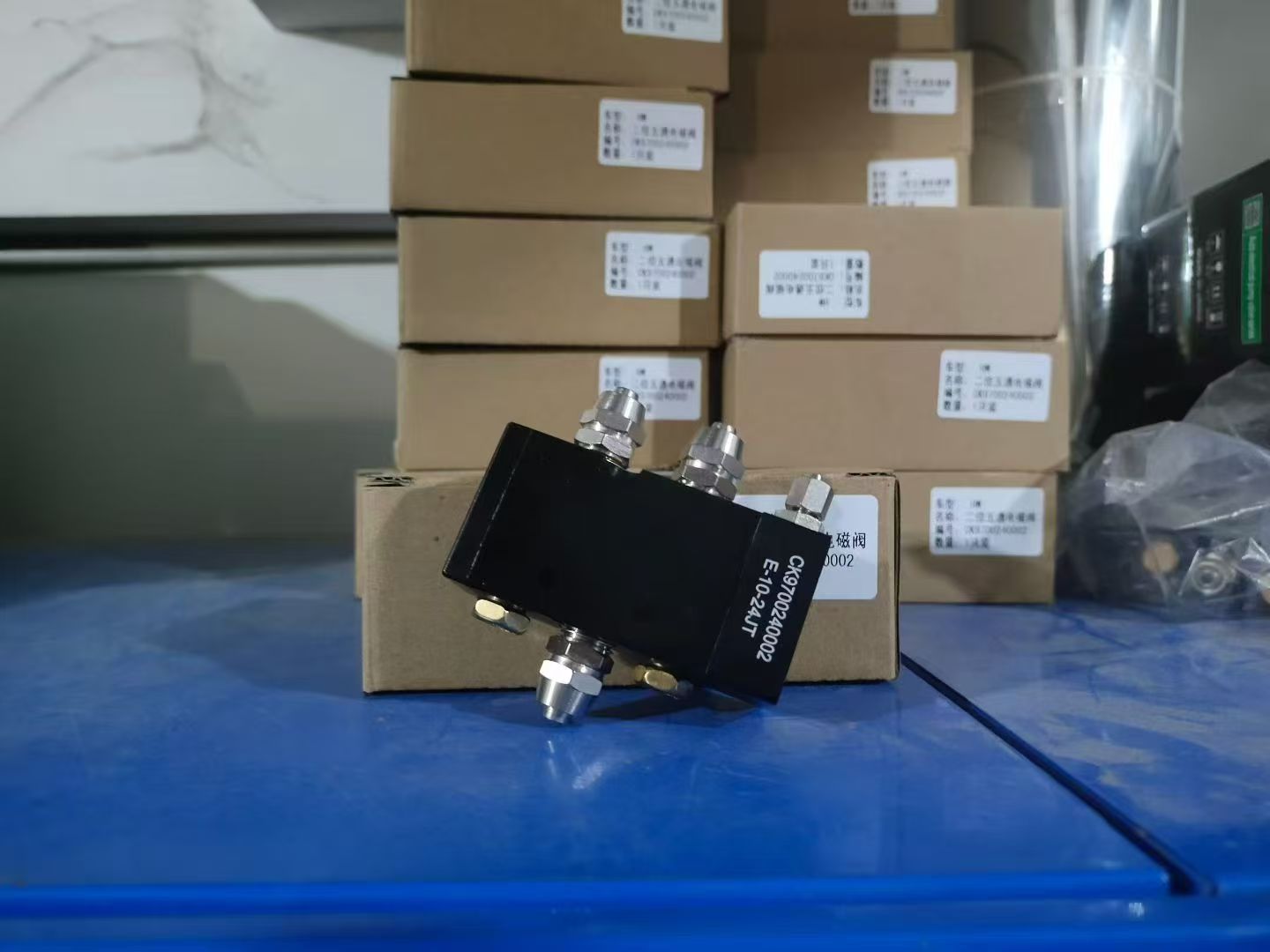

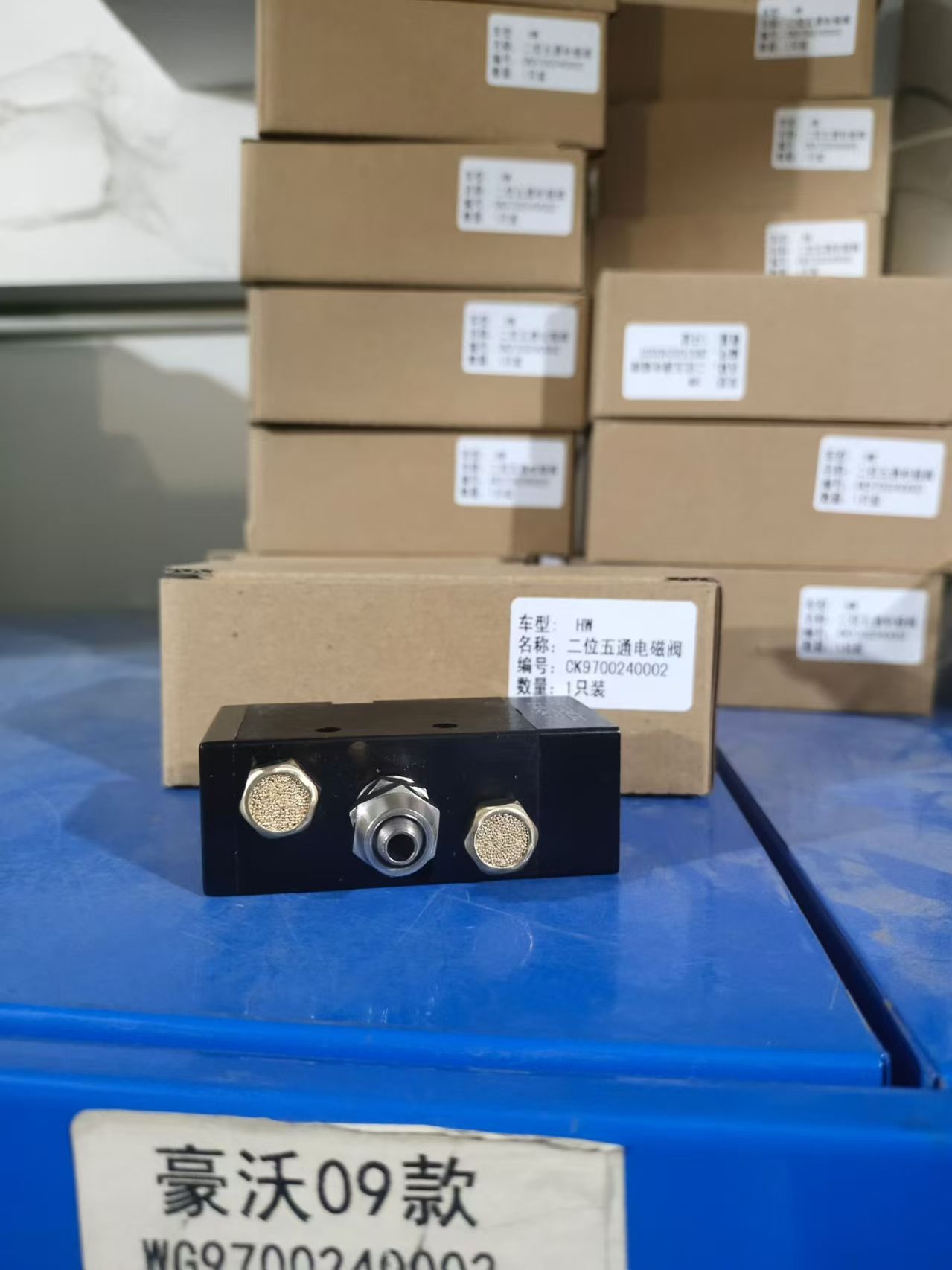

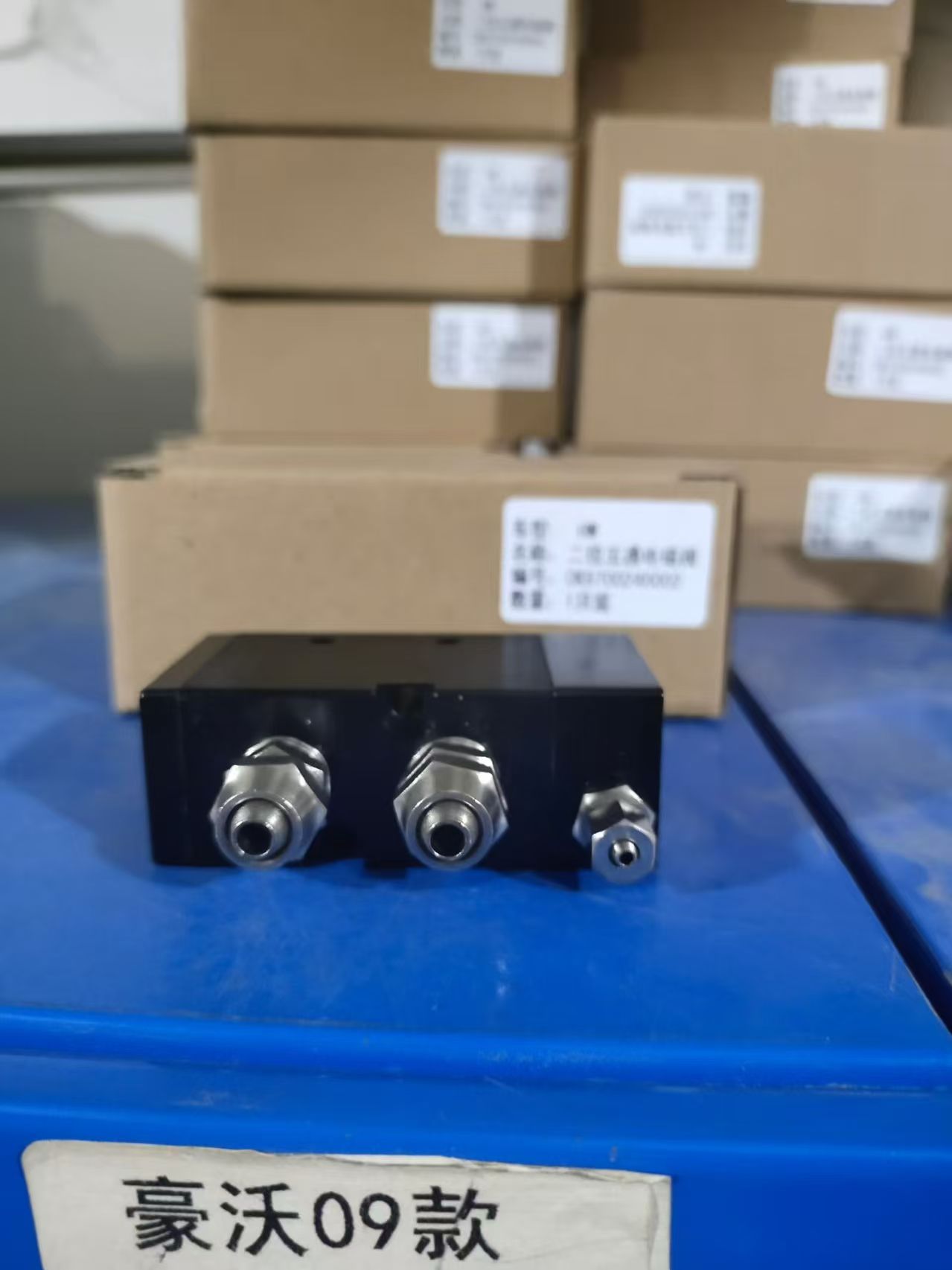

CK9700240002 Sinotruk Howo (HW) Series Heavy Truck 2-Position 5-Way Solenoid Valve Assembly

Core Positioning

This product is a core actuator in the pneumatic control system of Sinotruk Howo and other series heavy trucks. It is developed and manufactured strictly according to the original manufacturer's technical standards. With its precise electro-pneumatic conversion control capability, it is a key component ensuring the automated operation of the pneumatic device in heavy trucks and is essential for the stable operation of the heavy truck pneumatic system. "Control Center".

Model Identification and Core Parameters

Core Model: CK9700240002

Product Code: E-10-24JT

Rated Voltage: 24V (Compatible with mainstream electrical systems of heavy-duty trucks, stable voltage compatibility, avoiding malfunctions caused by voltage mismatch)

Valve Type Specification: Two-position five-way (Precisely controls air circuit on/off and reversal, meeting pneumatic requirements under multiple working conditions)

Core Functions and Application Value

As the "command executor" of the heavy-duty truck pneumatic system, this solenoid valve assembly precisely controls the on/off, reversal, and pressure regulation of the air circuit through efficient conversion of electrical signals and pneumatic signals. It is widely used in the automated control of key pneumatic devices in heavy-duty trucks:

ART] Integrated and convenient installation: It adopts an integrated design to integrate the core control components and interfaces into one body, which greatly reduces the number of external pipeline connections. It not only reduces the air resistance and leakage risk, but also simplifies the installation process. It does not require complicated debugging and can be directly adapted to the original vehicle installation position to improve the efficiency of maintenance and replacement.

Stable and reliable performance: The internal valve core is made of wear-resistant material and is matched with a precision transmission structure to provide sensitive response and action. It is accurate and can withstand the long-term and high-frequency use requirements of heavy trucks; the circuit part adopts anti-short circuit and anti-overload design to adapt to the complex electrical environment of heavy trucks and ensure safe operation.

Accurately adapted to vehicle models

After original factory technical verification and matching with actual vehicles, this product is perfectly adapted to the following heavy truck models and fully meets the original vehicle installation standards and performance requirements:

SINOTRUK HOWO T7H

Shantou Ka C7H/C9H

Haohan J7G/N7G

Other SINOTRUK Howo (HW) series adapted models

Summary of product core advantages

✅ Original factory-level adaptation: Accurately matches all target models of SINOTRUK, error-free installation, easy replacement

✅ High strength and durability: aluminum alloy valve body + stainless steel interfaceCorrosion-resistant and wear-resistant, suitable for harsh working conditions of heavy trucks

✅ Zero leakage seal: precision interface + high-quality seals, stable air pressure, reliable control

✅ Integrated design: reduces pipeline connections, efficient installation, and reduces the risk of failure

✅ Multi-scenario adaptation: covers core pneumatic controls such as differential locks and exhaust brakes, with comprehensive functions
