CK9719710004 Sinotruk Howo (HW) Series Heavy Truck Two-Position Three-Way Solenoid Valve Assembly

Core Positioning

This product is a core actuator in the pneumatic control system of Sinotruk Howo and other series heavy trucks. It is developed and manufactured strictly in accordance with original factory technical standards and the harsh operating conditions required by heavy trucks. With its precise electro-pneumatic conversion control logic, it becomes the "control core" ensuring the automated and stable operation of key pneumatic devices in heavy trucks. It is the preferred original factory-grade part for the repair and replacement of heavy truck pneumatic systems.

Model Identification and Core Parameters

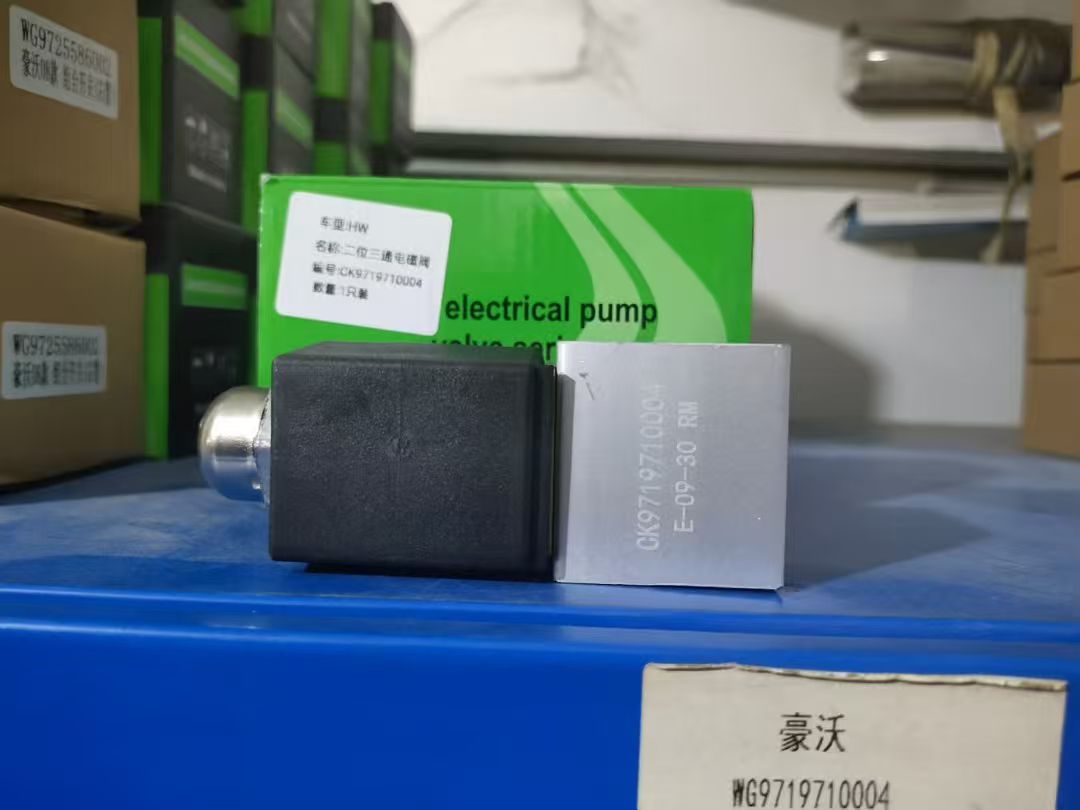

Core Model: CK9719710004

Valve Type Specification: Two-Position Three-Way (Precisely realizes pneumatic circuit opening and closing and bidirectional switching, adapting to the multi-state control requirements of a single pneumatic device in heavy trucks)

Applicable Voltage: Compatible with mainstream 24V for heavy trucks" Electrical System (Strong voltage adaptability, avoiding control failures due to voltage fluctuations, ensuring operational stability)

Core Functions and Application Value

As the "command execution unit" of the heavy-duty truck pneumatic system, this solenoid valve assembly can quickly respond to control commands through efficient and precise conversion of electrical signals and pneumatic signals, realizing on/off switching and bidirectional reversal of the pneumatic circuit, and is widely used in the core pneumatic systems of heavy-duty trucks.Automated control scenario of the braking device:

Precisely control the start and stop of the exhaust brake system to enhance vehicle braking safety and reduce braking system losses under long downhill, heavy load and other working conditions;

Adjust Control the engagement and disengagement of the differential lock to improve the vehicle's passability in complex road conditions such as mud and hill climbs, and ensure driving stability;

Realize automatic door opening and closing operations, simplify the driver's entry and exit process, and improve driving convenience; [P _END]

Adapted to other single-function pneumatic auxiliary devices, fully covering the key air path control needs of heavy trucks.

Its automated control features not only reduce the intensity of manual operation, but also improve control accuracy and response speed. degree, ensuring the coordinated operation of various pneumatic systems, indirectly improving the operating efficiency and driving safety of heavy trucks

Precision structure and quality advantages

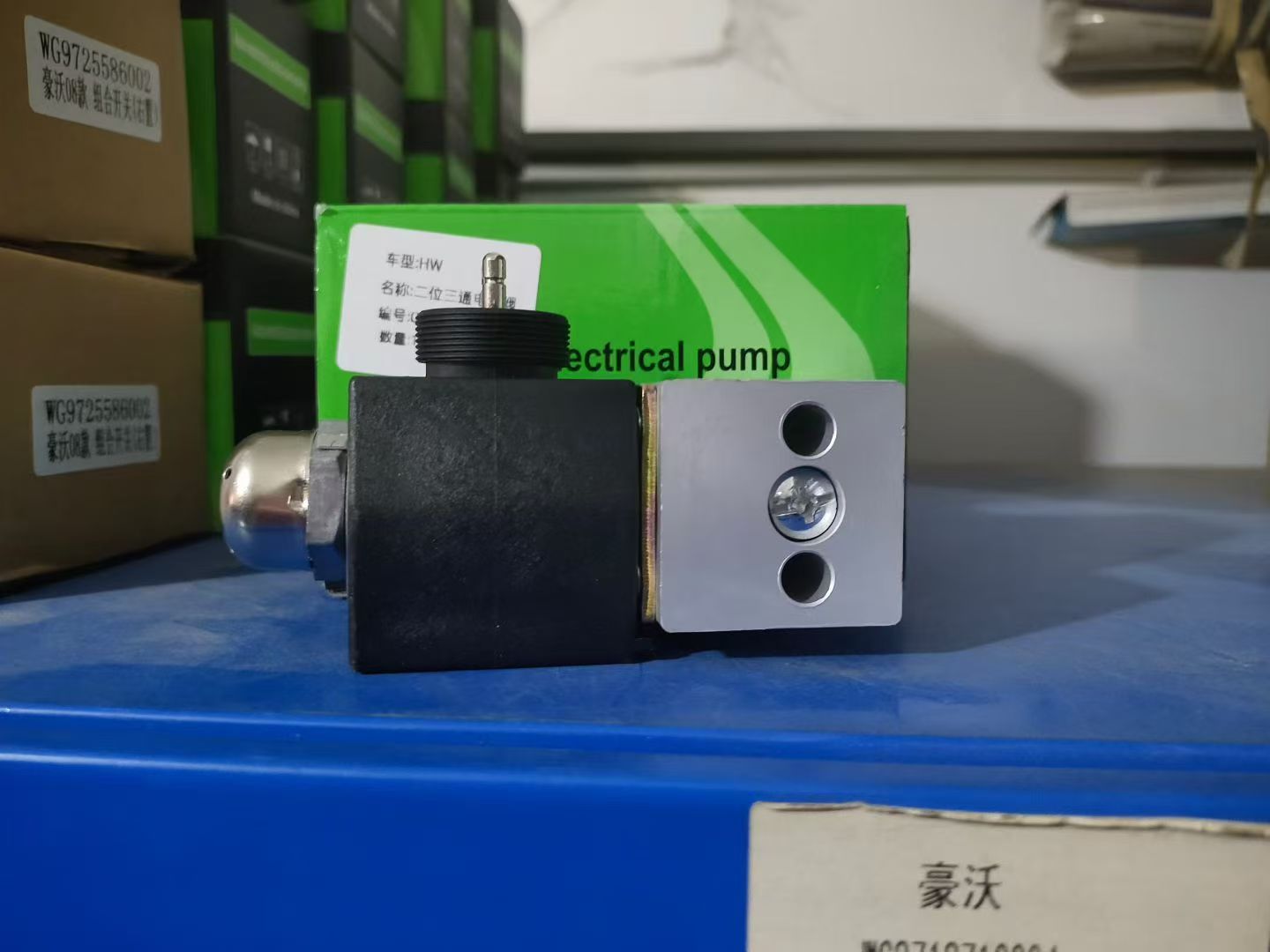

Lightweight anti-corrosion structure: using black high-strength electromagnetic coils. + Aluminum alloy one-piece valve body combination design, the electromagnetic coil has strong insulation and excellent heat dissipation performance, and can withstand long-term high-frequency workloads; the aluminum alloy valve body greatly reduces its own weight while ensuring structural strength, adapting to the lightweight design requirements of heavy trucks, and with special anti-corrosion treatment, it can resist the erosion of rain, dust, acid and alkali corrosion and other complex road conditions, extending the service life of the product.

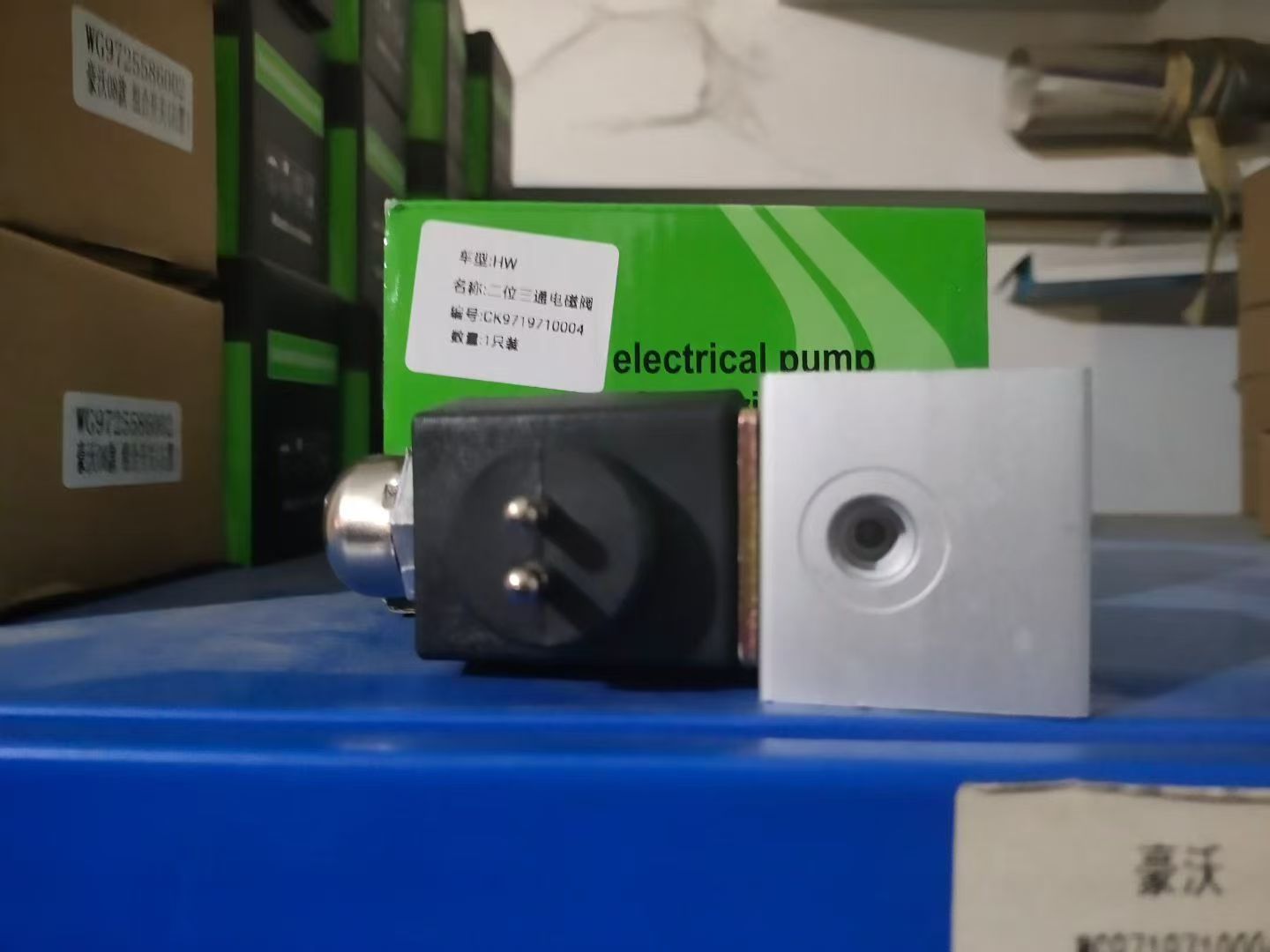

[P_STARTStable and reliable electrical connection: Equipped with a dual-pin electrical interface, the pins are made of highly conductive material, ensuring a tight fit during insertion and removal, strong connection stability, and effectively avoiding poor contact caused by bumps and vibrations; the interface has an anti-oxidation and anti-loosening design, adapting to the complex vibration environment of heavy trucks during long-term operation, ensuring stable circuit signal transmission.

Integrated and convenient installation: Adopting an integrated design, the electromagnetic control unit, air circuit interface, and other core components are integrated into one unit, significantly reducing the number of external pipeline connections and joints. This not only reduces air circuit resistance and leakage risk but also simplifies the installation process. No additional modification or complex debugging is required; it can be directly and accurately adapted to the original vehicle mounting position, improving maintenance and replacement efficiency. [P_EN] [D]

Precise and Stable Control Performance: The internal valve core is made of wear-resistant and high-temperature resistant material, combined with a precision transmission structure, ensuring sensitive action response (short response time) and precise reversing, capable of withstanding the long-term, high-frequency use requirements of heavy trucks; the air passage is precision-machined, resulting in low airflow resistance and ensuring stable air pressure; the circuit section has built-in short-circuit and overload protection mechanisms, adapting to the complex electrical environment of heavy trucks and comprehensively ensuring safe use.

Precisely Compatible Vehicle Models

Verified by the original manufacturer and tested on actual vehicles, this product fully complies with the original vehicle installation standards and performance requirements, perfectly compatible with the following heavy truck models:

Sinotruk Howo T7H

[RT] Sinotruk C7H/C9H

Howo J7G/N7G

Other Sinotruk Howo (HW) series compatible models

(Note: More precise compatible model information can be added according to actual sales or usage needs)

Summary of core product advantages

✅ Original factory level compatibility: Precisely matches Sinotruk target models, error-free installation, convenient and efficient replacement

✅ Outstanding durability: Alloy valve body + high-strength coil, corrosion-resistant and wear-resistant, good heat dissipation, suitable for harsh working conditions

✅ More stable connection: Dual-pin electrical interface, vibration-resistant and anti-loosening, uninterrupted signal transmission

✅ Easier installation: Integrated design, reduces pipelines and connectors, reduces the risk of failure

✅ Ultra-precise control: The valve core responds sensitively, and the air path switching is stable, ensuring efficient operation of the pneumatic system.
