I. Core Product Identification and Positioning

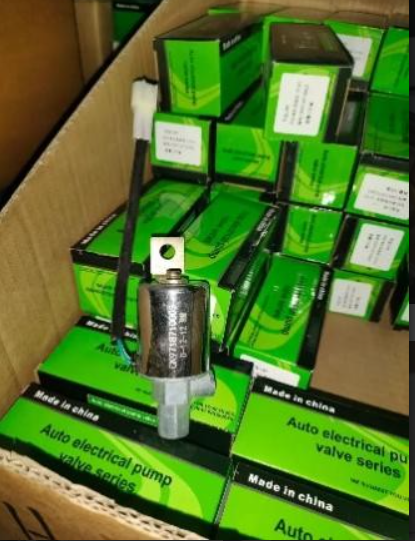

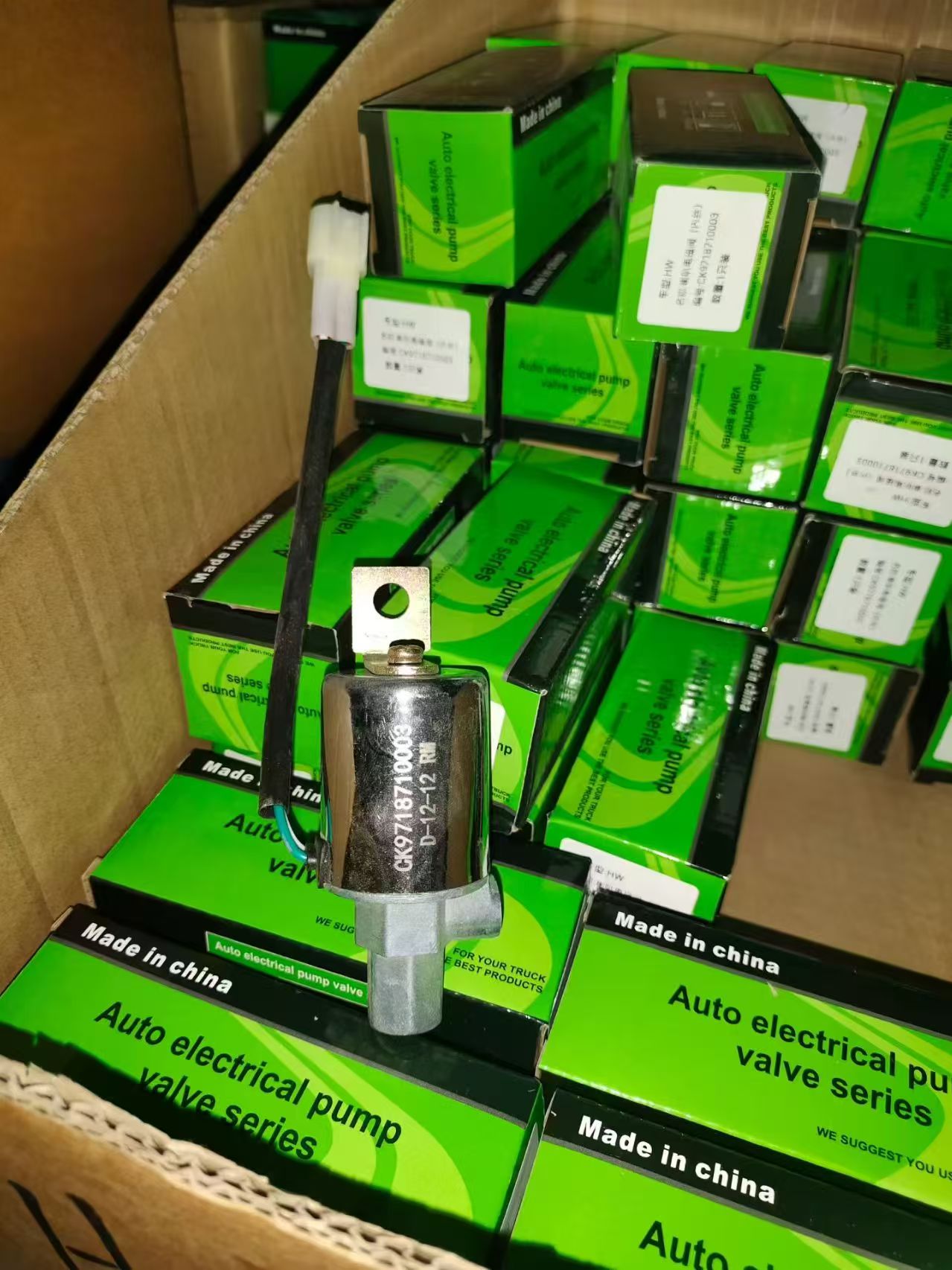

Model Specification: CK9718710003 (marked as D-12-12, compatible with 12V DC voltage)

Product Name: Electromagnetic Valve Assembly

Core Attributes: Key actuator of heavy-duty truck pneumatic control system, certified by ISO/TS 16949 automotive industry quality standards, original equipment quality, designed specifically for heavy-duty and complex working conditions of commercial vehicles, serving as the "precise control center" for achieving automated pneumatic control, compatible with mainstream heavy-duty truck models from multiple brands.

II. Core Functions and System Value

As the "execution command terminal" of the pneumatic control system, this electromagnetic valve assembly undertakes the core mission of precise pneumatic control, directly affecting the operating efficiency of key pneumatic devices in heavy-duty trucks:

Precise electrical signal conversion: rapid response ECU Alternatively, driver commands can be used to convert electrical signals into mechanical actions, achieving instantaneous switching of airflow on/off, with a response delay of ≤50ms, ensuring synchronous execution of pneumatic devices;

Multi-scenario control capabilities: Widely used in core pneumatic devices such as exhaust brakes, differential locks, car horns, and pneumatic wipers, improving the convenience and safety of driving operations through stable airflow control, suitable for heavy loads and hill climbing.Multiple scenarios such as complex road conditions;

System stability guarantee: Reliable on/off control logic is adopted to avoid equipment failure caused by air circuit malfunctions, while reducing the ineffective loss of pneumatic devices, extending the overall service life of the air circuit system, and reducing operation and maintenance costs.

III. Structural design and performance advantages

1. Stainless steel shell: a protective barrier for harsh working conditions

Made of 304 stainless steel in one piece by stamping, compared with ordinary carbon steel shells, it has three core protective advantages:

Strong corrosion resistance: Effectively resists the corrosion of rainwater, road salt, dust, etc., and is suitable for harsh environments with high dust and humidity such as mines, coastlines, and infrastructure. The shell has a rust-free service life of ≥5 years;

Excellent vibration resistance: The tensile strength reaches 520MPa or more, which can withstand the high-frequency vibration of heavy truck driving (vibration frequency 10-2000Hz, acceleration 20g), no risk of deformation or cracking;

Wide environmental adaptability: Outstanding high and low temperature resistance, can work stably in ambient temperatures of -40℃ to 85℃, avoiding shell embrittlement or seal failure caused by extreme climates.

2. Built-in high-quality electromagnetic coil: efficient and reliable power core

Equipped with a fixed-state...The high-efficiency electromagnetic coil is made of oxygen-free copper enameled wire and features an optimized magnetic circuit design, achieving three major performance breakthroughs:

Fast response speed: The coil's rated power is ≤35W, and magnetic force is generated instantaneously after energization, with a valve core action response time of ≤50ms, ensuring rapid start-up of the pneumatic device;

High operational reliability: The coil's insulation class reaches H, with a temperature resistance of ≥180℃, and it can withstand 1000 hours of continuous operation without overheating damage. Its operational life is ≥1 million cycles, far exceeding the industry average;

Optimized energy consumption: It adopts a low-power design, with a standby current of ≤5mA and a stable operating current of 2.8-3.2A, reducing the overall vehicle power consumption while meeting control requirements.

3. Standard wiring harness plug: A practical design for convenient installation

Equipped with ISO 6409 compliant..." Standard waterproof wire harness connector, balancing installation efficiency and reliability:

Easy installation: The connector uses a snap-fit ​​connection design with moderate insertion and extraction force (insertion force ≤30N, extraction force ≥15N), allowing for assembly without professional tools, suitable for original equipment manufacturer (OEM) assembly and after-sales service scenarios;

Effective sealing and protection: The connector has a built-in double waterproof sealing ring with an IP67 protection rating, effectively preventing moisture and dust from entering the interface and avoiding short circuits.Fault;

Strong compatibility: The plug pin definitions are precisely matched with the Sinotruk original circuit system, requiring no additional wiring modifications, ensuring stable signal transmission and compatibility with the vehicle's electrical control system.

IV. Precisely compatible vehicle models and application scenarios

Compatible vehicle models (covering Sinotruk's mainstream platforms):

Sinotruk Howo series: Howo T7H, Howo TH7, Howo T5G, Howo N7W

Sinotruk Sinotruk Shandeka series: Shandeka C7H, Shandeka C9H, Shandeka G7S

Sinotruk Howohan series: Howohan J7G, Howohan N7G, Howohan J7B, Howohan N5G

Other compatibility: Compliant with 12V" Heavy-duty trucks with voltage-controlled pneumatic circuit systems (original factory specifications matched)

Applicable scenarios:

Designed specifically for heavy-duty scenarios such as long-distance logistics, engineering construction, mining operations, and cold chain transportation, it can operate stably in complex road conditions, frequent start-stop operations, and extreme temperature and humidity environments. It is a core component ensuring the reliable operation of critical devices such as exhaust brakes and differential locks in heavy-duty trucks, providing strong support for driving safety and ease of operation.
