I. Core Product Identification and Positioning

Model Specifications: WG9719230023 (Original Factory Standard Model, Exclusive to Howo A7 Series Clutch Master Cylinder)

Product Name: Clutch Master Cylinder

Core Attributes: Key core component of heavy-duty truck clutch hydraulic control system, certified by ISO/TS 16949 automotive industry quality standards, original factory-grade quality, specifically designed for heavy-duty shifting and frequent operation scenarios in commercial vehicles, enabling precise clutch disengagement and engagement. "Power Conversion Hub," precisely adapted to mainstream heavy-duty truck models in the Sinotruk Howo series.

II. Core Functions and System Value

As the core actuator of the clutch hydraulic control system, this clutch master cylinder bears the dual mission of power transmission and control assurance, directly affecting driving experience and driving safety:

Precise Power Conversion: Efficiently converts the driver's pedal mechanical force into hydraulic thrust (pressure conversion efficiency ≥95%), driving the clutch release bearing to move precisely, achieving smooth clutch disengagement and engagement, ensuring smooth and jerky gear shifting, and adapting to complex driving scenarios such as heavy-load starts and hill shifting;

Optimized Control Performance: Through reasonable cylinder diameter design and hydraulic circuit matching, the pedal operating force is controlled between 80-120".Between "N", the driver's operating intensity is reduced, alleviating fatigue during long-distance driving. Simultaneously, the hydraulic response delay is ≤30ms, ensuring synchronization between gear shifting actions and operating commands.

System stability guarantee: High-quality sealing structure and durable material design prevent hydraulic oil leakage, air intake, and other malfunctions, preventing gearbox wear caused by incomplete clutch disengagement or poor engagement, extending the service life of the clutch and gearbox, and reducing maintenance costs.

III. Structural Design and Performance Advantages

1. Aluminum Alloy Cast Housing: A Perfect Balance of Lightweight and High Strength

Precision casting using ADC12 aluminum alloy material achieves three core improvements compared to traditional cast iron housings:

Lightweight design: The housing weight is reduced by more than 40% compared to cast iron, contributing to overall vehicle weight reduction and fuel efficiency, while also reducing the load on the pedal control system;

Reliable structural strength: After T6 heat treatment, the tensile strength reaches 280MPa. The above specifications can withstand high-frequency pressure impacts from hydraulic systems (maximum working pressure ≥10MPa) without deformation or cracking risk, and have a service life ≥100,000 kilometers;

Excellent heat dissipation performance: the thermal conductivity of aluminum alloy is more than 3 times that of cast iron, quickly dissipating the working heat of hydraulic oil and avoiding oil deterioration and tightness caused by excessively high oil temperature.Sealing and aging ensures stable operation of the hydraulic system.

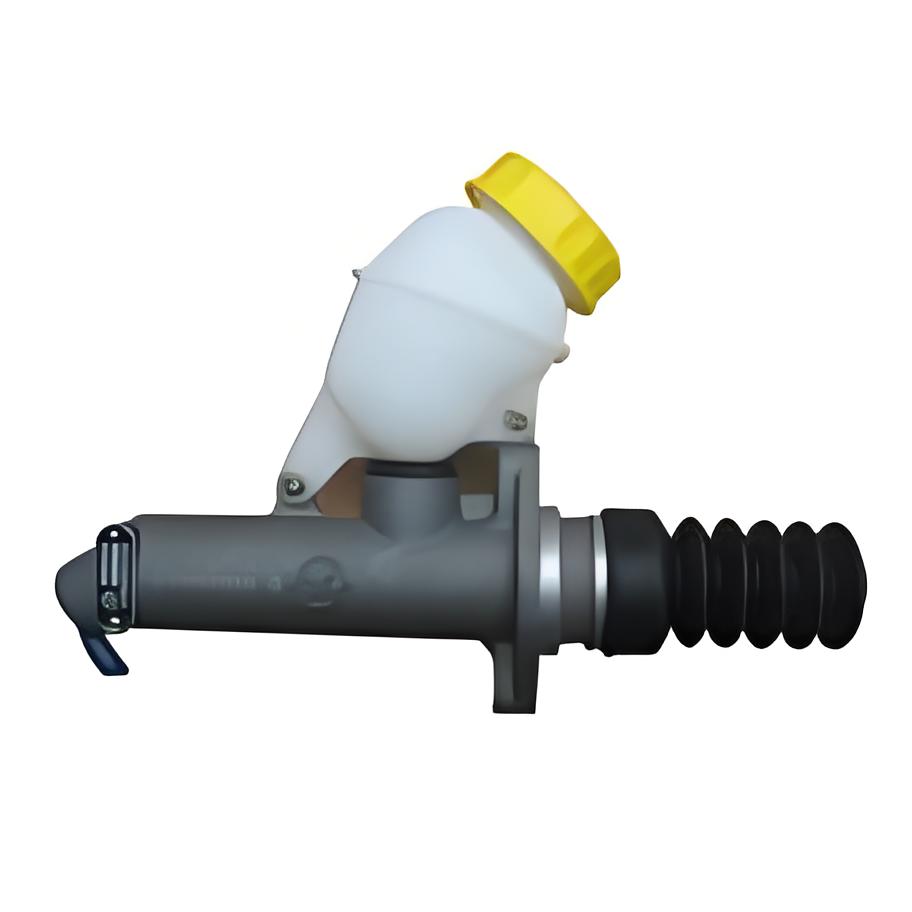

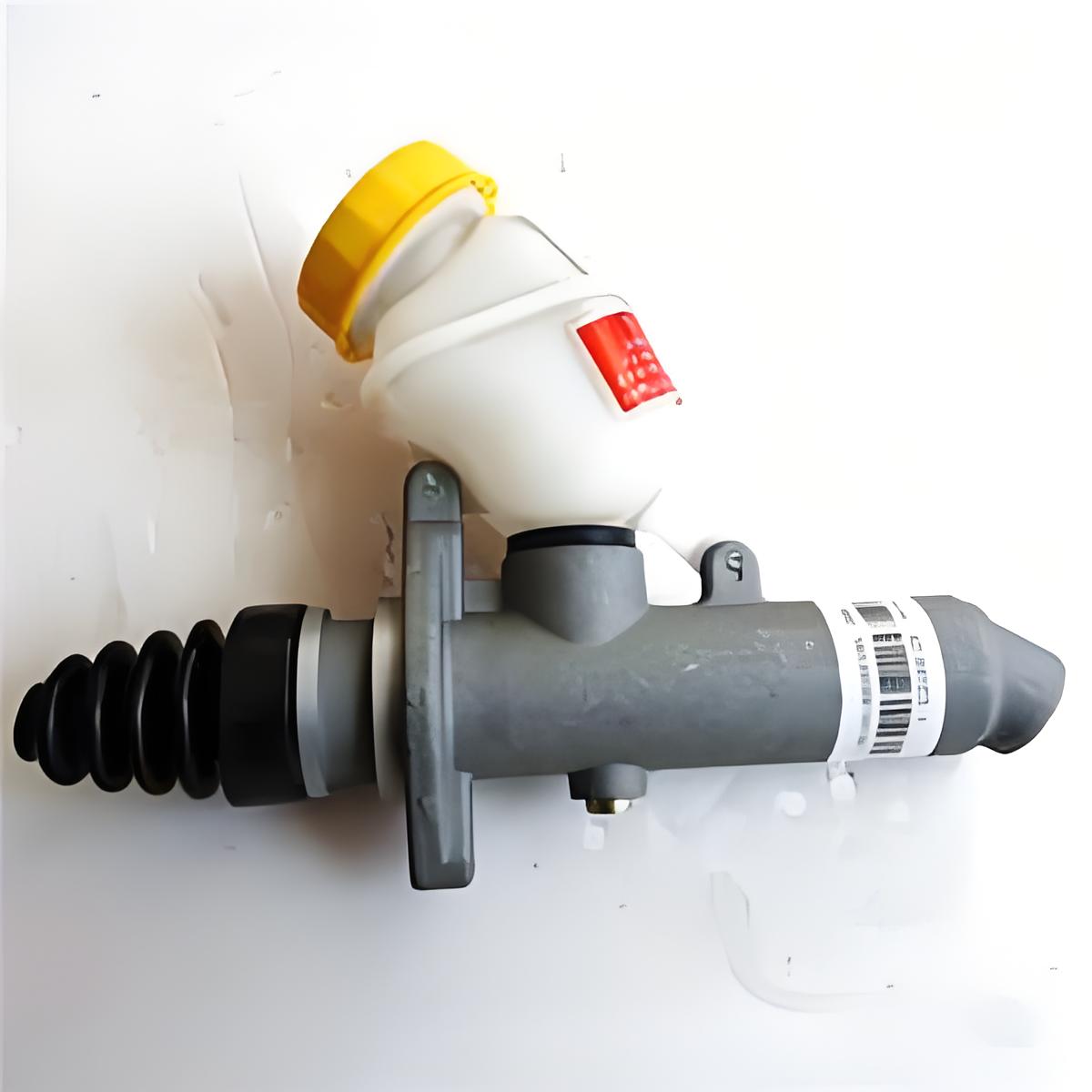

2. Integrated plastic reservoir: Convenient and practical humanized design

The reservoir and shell are integrally injection molded, with a yellow dust cover, balancing practicality and convenience:

Visualized liquid level: Made of transparent PC material, the driver can intuitively observe the hydraulic oil level, promptly detect oil shortage problems, and avoid operational failures due to insufficient oil;

Comprehensive dust protection: The yellow dust cover has a built-in sealing gasket with an IP54 protection rating, effectively blocking dust and moisture from entering the reservoir, preventing hydraulic oil contamination, and ensuring the cleanliness of the hydraulic circuit;

Convenient filling: The tank opening adopts a large-diameter design, which is not easy to spill when filling hydraulic oil, and it is compatible with the original hydraulic oil model specified by Sinotruk, without the need for additional compatibility.

3." High-quality rubber cups: the core guarantee of sealing and durability

Built-in imported nitrile rubber (NBR) cups, treated with a special vulcanization process, possess excellent sealing performance and durability:

Reliable sealing performance: The cup fits the cylinder wall with an accuracy of 0.01mm, with no hydraulic oil leakage (leakage ≤0.005ml/h), avoiding malfunctions such as pedal softness and incomplete disengagement caused by air entering the hydraulic circuit;

Oil-resistant and anti-aging: The nitrile rubber material is resistant to hydraulic oil corrosion, and does not swell or crack after long-term immersion. It maintains elasticity within a temperature range of -40℃ to 120℃, and the sealing life is ≥80,000 kilometers or 2 years;

Low friction resistance: The surface of the piston cup is treated with low friction, and the coefficient of sliding friction with the cylinder wall is ≤0.15, ensuring smooth pedal operation, reducing wear, and extending service life.

IV. Precisely compatible vehicle models and application scenarios

Compatible vehicle models (covering the mainstream platforms of Sinotruk Howo):

Sinotruk Howo series: Howo A7, Howo T7H, Howo TH7, Howo T5G

Other Compatibility: Heavy-duty vehicles conforming to Sinotruk's original clutch hydraulic control system specifications (original dimensions and interface matching)

Applicable Scenarios:

Designed specifically for heavy-load, high-frequency shifting scenarios such as long-distance logistics, engineering construction, mining operations, and cold chain transportation, it can operate stably in ambient temperatures of -40℃ to 85℃ and complex road conditions. Whether starting under heavy load, continuous shifting, or long-distance driving, it can ensure the precision and reliability of the clutch control system, providing the driver with a smooth shifting experience and reducing the risk of vehicle malfunction.
